Collision rendering

Hello, today I saw that people are using the old collsion rendering code from ymir and I think its disgusting and useless to be honest. The new method is using wire framed 3d meshes instead of weird circles that look like a psychosis. You enable the collision rendering by opening the console and run the “collision” command

Before

before

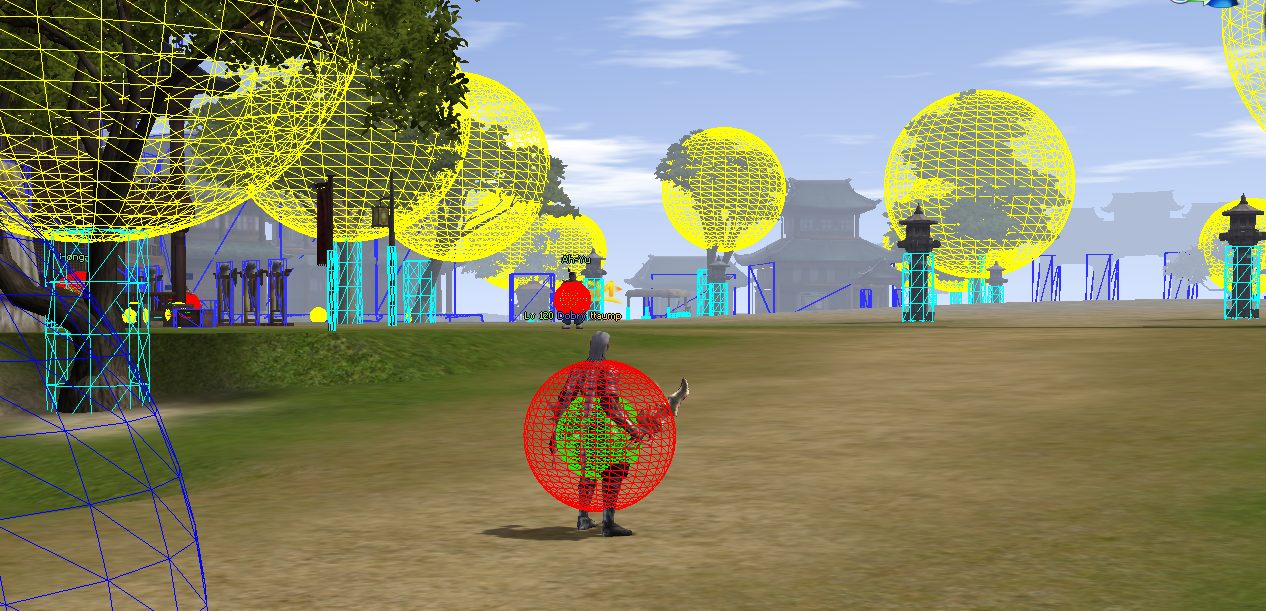

After

after

this is only in the client source.

GameLib/ActorInstanceRender.cpp search for void CActorInstance::RenderCollisionData() and replace whole function with

void CActorInstance::RenderCollisionData()
{
	static CScreen screen;

	D3DXVECTOR3 object_center;
	float sphere_radius;
	GetBoundingSphere(object_center, sphere_radius);

	//render-box
	if (false)//nice but kinda useless, enable if needed
	{
		STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(0, isShow() ? 255 : 0, isShow() ? 0 : 255));
		screen.RenderSphere(NULL,
			object_center.x, //left - right
			object_center.y, // front - back
			object_center.z, // up - down
			sphere_radius,
			D3DFILL_WIREFRAME
		);
	}


	//hit-box
	for (const TCollisionPointInstance& point : m_DefendingPointInstanceList)
	{
		for (const CDynamicSphereInstance& collision : point.SphereInstanceVector)
		{
			STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(255, 0, 0));
			screen.RenderSphere(NULL,
				collision.v3Position.x, //left - right
				collision.v3Position.y, // front - back
				collision.v3Position.z, // up - down
				collision.fRadius,
				D3DFILL_WIREFRAME
			);
		}
	}

	//click-box
	for (const TCollisionPointInstance& point : m_BodyPointInstanceList)
	{
		for (const CDynamicSphereInstance& collision : point.SphereInstanceVector)
		{
			STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(0, 255, 0));
			screen.RenderSphere(NULL,
				collision.v3Position.x, //left - right
				collision.v3Position.y, // front - back
				collision.v3Position.z, // up - down
				collision.fRadius,
				D3DFILL_WIREFRAME
			);
		}
	}

	//AoE-Skill-box
	for (const CDynamicSphereInstance& collision : m_kSplashArea.SphereInstanceVector)
	{
		STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(0, 0, 255));
		screen.RenderSphere(NULL,
			collision.v3Position.x, //left - right
			collision.v3Position.y, // front - back
			collision.v3Position.z, // up - down
			collision.fRadius,
			D3DFILL_WIREFRAME
		);
	}
}

EterLib/GrpScreen.h change

void RenderD3DXMesh(LPD3DXMESH lpMesh, const D3DXMATRIX * c_pmatWorld, float fx, float fy, float fz, float fRadius, D3DFILLMODE d3dFillMode);

to

void RenderBox(D3DXMATRIX c_pmatWorld, D3DXVECTOR3 size, D3DFILLMODE d3dFillMode = D3DFILL_SOLID);
void RenderD3DXMesh(LPD3DXMESH lpMesh, const D3DXMATRIX * c_pmatWorld, D3DFILLMODE d3dFillMode);

EterLib/GrpScreen.cpp add

#include <cmath>

at the top

change

void CScreen::RenderD3DXMesh(LPD3DXMESH lpMesh, const D3DXMATRIX * c_pmatWorld, float fx, float fy, float fz, float fRadius, D3DFILLMODE d3dFillMode) {
	...
}

to

void CScreen::RenderD3DXMesh(LPD3DXMESH lpMesh, const D3DXMATRIX * matWorld, D3DFILLMODE d3dFillMode)
{
	CD3DXMeshRenderingOption SetRenderingOption(d3dFillMode, *matWorld);
#if DIRECT3D_VERSION >= 0x0900
	LPDIRECT3DINDEXBUFFER9 lpIndexBuffer;
	LPDIRECT3DVERTEXBUFFER9 lpVertexBuffer;
	lpMesh->GetIndexBuffer(&lpIndexBuffer);
	lpMesh->GetVertexBuffer(&lpVertexBuffer);
	STATEMANAGER.SetFVF(lpMesh->GetFVF());
#else
	LPDIRECT3DINDEXBUFFER8 lpIndexBuffer;
	LPDIRECT3DVERTEXBUFFER8 lpVertexBuffer;
	lpMesh->GetIndexBuffer(&lpIndexBuffer);
	lpMesh->GetVertexBuffer(&lpVertexBuffer);
	STATEMANAGER.SetVertexShader(lpMesh->GetFVF());
#endif
	STATEMANAGER.SetIndices(lpIndexBuffer, 0);
	STATEMANAGER.SetStreamSource(0, lpVertexBuffer, 24);
	STATEMANAGER.DrawIndexedPrimitive(D3DPT_TRIANGLELIST, 0, lpMesh->GetNumVertices(), 0, lpMesh->GetNumFaces());
}

change

void CScreen::RenderSphere(const D3DXMATRIX * c_pmatWorld, float fx, float fy, float fz, float fRadius, D3DFILLMODE d3dFillMode) {
	...
}

to

void CScreen::RenderSphere(const D3DXMATRIX * c_pmatWorld, float fx, float fy, float fz, float fRadius, D3DFILLMODE d3dFillMode)
{
	D3DXMATRIX matTranslation;
	D3DXMATRIX matScaling;

	D3DXMatrixTranslation(&matTranslation, fx, fy, fz);
	D3DXMatrixScaling(&matScaling, fRadius, fRadius, fRadius);

	D3DXMATRIX matWorld = matScaling * matTranslation;

	if (c_pmatWorld)
	{
		matWorld *= *c_pmatWorld;
	}

	RenderD3DXMesh(ms_lpSphereMesh, &matWorld, d3dFillMode);
}

change

void CScreen::RenderCylinder(const D3DXMATRIX * c_pmatWorld, float fx, float fy, float fz, float fRadius, float height, D3DFILLMODE d3dFillMode)

to

void CScreen::RenderCylinder(const D3DXMATRIX * c_pmatWorld, float fx, float fy, float fz, float fRadius, float height, D3DFILLMODE d3dFillMode)
{
	D3DXMATRIX matTranslation;
	D3DXMATRIX matScaling;

	D3DXMatrixTranslation(&matTranslation, fx, fy, fz);
	D3DXMatrixScaling(&matScaling, fRadius, fRadius, fRadius + height);

	D3DXMATRIX matWorld;
	matWorld = matScaling * matTranslation;

	if (c_pmatWorld)
	{
		matWorld *= *c_pmatWorld;
	}

	RenderD3DXMesh(ms_lpCylinderMesh, &matWorld, d3dFillMode);
}

void CScreen::RenderBox(D3DXMATRIX world, D3DXVECTOR3 size, D3DFILLMODE d3dFillMode)
{
	D3DXMATRIX scale;
	//width, height, depth
	D3DXMatrixScaling(&scale, size.x, size.y, 10);

	D3DXMATRIX result = scale * world;
	RenderD3DXMesh(ms_lpBoxMesh, &result, d3dFillMode);
}

EterLib/GrpDevice.cpp find

	D3DXCreateCylinder(ms_lpd3dDevice, 1.0f, 1.0f, 1.0f, 8, 8, &ms_lpCylinderMesh, NULL);

add below

	D3DXCreateBox(ms_lpd3dDevice, 1.0f, 1.0f, 1.0f, &ms_lpBoxMesh, NULL);

find

	safe_release(ms_lpCylinderMesh);

add below

	safe_release(ms_lpBoxMesh);

EterLib/GrpBase.h find

		static LPD3DXMESH				ms_lpCylinderMesh;

add below

		static LPD3DXMESH				ms_lpBoxMesh;

EterLib/GrpBase.cpp find

LPD3DXMESH				CGraphicBase::ms_lpCylinderMesh = NULL;

add below

LPD3DXMESH				CGraphicBase::ms_lpBoxMesh = NULL;

EterLib/CollisionData.h find

	D3DXVECTOR3 v3InsideVector[4];

add below

	D3DXVECTOR3 size;
	D3DXMATRIX trans;

find every

D3DFILL_SOLID

inside the EterLib/CollisionData.h file and replace with

D3DFILL_WIREFRAME

EterLib/CollisionData.cpp find

				D3DXVec3Cross(&PlaneData.v3InsideVector[3], &PlaneData.v3Normal, &v3Line3);

add below

				PlaneData.trans = matTransform;
				PlaneData.size.x = c_pCollisionData->fDimensions[0];
				PlaneData.size.y = c_pCollisionData->fDimensions[1];

find

void CSphereCollisionInstance::Render(D3DFILLMODE d3dFillMode)

and replace with

void CSphereCollisionInstance::Render(D3DFILLMODE d3dFillMode)
{
	static CScreen s;
	STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(255, 255, 0));
	s.RenderSphere(
		NULL,
		m_attribute.v3Position.x,
		m_attribute.v3Position.y,
		m_attribute.v3Position.z,
		m_attribute.fRadius,
		d3dFillMode
	);
}

void CPlaneCollisionInstance::Render(D3DFILLMODE d3dFillMode)

and replace with

void CPlaneCollisionInstance::Render(D3DFILLMODE)
{
	static CScreen s;
	STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(50, 50, 255));
	s.RenderBox(
		m_attribute.trans,
		m_attribute.size,
		D3DFILL_WIREFRAME
	);
}

void CCylinderCollisionInstance::Render(D3DFILLMODE d3dFillMode)

and replace with

void CCylinderCollisionInstance::Render(D3DFILLMODE d3dFillMode)
{
	static CScreen s;
	STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(0, 255, 255));
	s.RenderCylinder(
		NULL,
		m_attribute.v3Position.x,
		m_attribute.v3Position.y,
		m_attribute.v3Position.z,
		m_attribute.fRadius,
		m_attribute.fHeight,
		d3dFillMode
	);
}

void CAABBCollisionInstance::Render(D3DFILLMODE d3dFillMode)

and replace with

void CAABBCollisionInstance::Render(D3DFILLMODE d3dFillMode)
{
	static CScreen s;
	STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(255, 50, 255));
	s.RenderCube(
		m_attribute.v3Min.x,
		m_attribute.v3Min.y,
		m_attribute.v3Min.z,
		m_attribute.v3Max.x,
		m_attribute.v3Max.y,
		m_attribute.v3Max.z
	);
}

void COBBCollisionInstance::Render(D3DFILLMODE d3dFillMode)

and replace with

void COBBCollisionInstance::Render(D3DFILLMODE d3dFillMode)
{
	static CScreen s;
	STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, D3DCOLOR_XRGB(255, 255, 50));
	s.RenderCube(
		m_attribute.v3Min.x,
		m_attribute.v3Min.y,
		m_attribute.v3Min.z,
		m_attribute.v3Max.x,
		m_attribute.v3Max.y,
		m_attribute.v3Max.z,
		m_attribute.matRot
	);
}
